Injector Pressure in Diesel Engines Causes, Signs, Precautions, and Adjustment Guidelines

The blog Understanding Every Aspect of the Injector Pressure Fault in Marine Engines discusses the critical role of fuel injectors in marine engine performance and the impact of injector pressure faults. It outlines the causes, symptoms, and consequences of this issue, emphasizing its significance for engine efficiency, emissions, and safety. The article also provides troubleshooting steps, precautionary measures, and maintenance strategies to effectively address and prevent injector pressure faults in marine engines, ensuring reliable vessel operation.
LAKSHMI-PRASANNA
Table of Contents

What is Injector Pressure Fault?

An Injector Pressure Fault occurs when the pressure within the fuel injection system deviates from the normal range, disrupting the proper functioning of the engine. This leads to improper fuel atomization and inefficient combustion, which can severely impact engine performance, fuel efficiency, and overall reliability.

Criticality and Significance

Injector Pressure Faults are critical because they can directly affect an engine’s fuel delivery system, causing reduced engine power, increased fuel consumption, and, over time, potential engine damage. These faults can result in suboptimal combustion, leading to excessive emissions, increased operating costs, and possible failure of vital engine components.

Components Involved & Their Role

Several key engine components contribute to the fuel injection system’s efficiency, and any malfunction in these can lead to Injector Pressure Faults:
  • Fuel Injectors: These injectors are responsible for accurately spraying fuel into the combustion chamber, where it mixes with air for combustion. Poor injector performance can result in improper fuel delivery, directly impacting pressure levels.
  • Fuel Pump: The pump is responsible for transferring fuel from the tank to the injectors at the necessary pressure. A faulty pump can lead to inadequate pressure, triggering an Injector Pressure Fault.
  • Pressure Regulator: This component ensures that the fuel pressure remains within optimal levels. A malfunctioning regulator may cause fluctuating pressure, affecting injector performance.
  • Fuel Filter: The filter removes impurities and debris from the fuel, protecting the system. A clogged filter can restrict fuel flow, leading to erratic pressure readings.
  • Engine Control Unit (ECU): The ECU monitors and controls fuel injection parameters, including pressure. If the ECU malfunctions or misinterprets sensor data, it may cause incorrect fuel pressure readings.

Conditions That Lead to This Issue

Various conditions can lead to Injector Pressure Faults, especially in high-speed and medium-speed engines in industries like marine, oil & gas, and power generation. Some common causes include:
  • Mechanical Wear and Tear: Over time, components like fuel injectors and pumps can wear down, leading to pressure deviations.
  • Contaminated Fuel: Impurities or water in the fuel can clog fuel filters or damage injectors, leading to abnormal pressure readings.
  • Improper Fuel Quality: Inconsistent fuel quality can affect the fuel pump's ability to maintain the right pressure, triggering faults.
  • Crankshaft Deformation: In the marine and oil & gas sectors, operational stresses, particularly in rough conditions, can lead to crankshaft deformation. This can affect the timing and function of fuel injectors, causing irregular pressure levels.
  • Corrosion and Erosion: Harsh operating environments, such as those found in power plants or marine vessels, can lead to corrosion of critical components, affecting fuel pressure regulation.

What Would Cause the Injector Pressure Fault?

  • Worn Injectors: Injectors can wear over time, leading to inadequate fuel delivery.
  • Clogged Fuel Filters: Impurities can block fuel flow, causing pressure drops.
  • Malfunctioning Fuel Pumps: A faulty pump may not generate sufficient pressure.
  • Air Leaks in Fuel Lines: Air ingress can lead to erratic fuel pressure.
  • Pressure Regulator Failure: A malfunctioning regulator can cause pressure fluctuations.
  • Corrosion or Deposits: Build-up of deposits can obstruct injector orifices.

Symptoms/Signs of the Injector Pressure Fault

  • Loss of Power: The engine struggles to reach optimal power levels while running.
  • Increased Fuel Consumption: Noticeable rise in fuel usage during operation.
  • Engine Misfiring: Irregular engine performance, characterized by sudden jolts.
  • Black Smoke from Exhaust: Incomplete combustion due to insufficient fuel atomization.
  • Warning Lights on Dashboard: Illuminated indicators signaling engine issues.

Consequences of the Injector Pressure Fault

  • Poor Engine Performance: Inadequate pressure results in suboptimal combustion.
  • Increased Emissions: Inefficient combustion leads to higher pollutant levels.
  • Engine Damage: Prolonged operating under these conditions can cause major breakdowns.
  • Fatigue on Engine Components: Strain on other components such as the fuel pump and filters.
  • Cooling System Impact: Higher operating temperatures due to inefficient fuel combustion.

Troubleshooting and Actions to Be Taken in Case of the Injector Pressure Fault

  • Inspect Fuel Injectors: Check for blockages or wear; clean or replace as necessary.
  • Test Fuel Pump Performance: Verify that the pump delivers the required pressure.
  • Examine Fuel Filters: Replace clogged or dirty filters to ensure clear flow.
  • Check for Air Leaks: Inspect fuel lines for leaks that could compromise pressure.
  • Evaluate Pressure Regulator Functionality: Ensure pressure is being maintained correctly.

Solutions for Injector Pressure Fault in Marine Engines

  • 1. Conduct Thorough Diagnostics: Utilize diagnostic tools to regularly check engine and fuel system health, specifically focusing on pressure readings from the ECU. This helps identify any discrepancies quickly. Our team will help you with all inspection and diagnostic process and we have with three decades of experience solving engine issues across 30+ countries, our expert team at Neptunus is equipped offer end to end Main Engine Overhaul and Repair Services.
  • 2. Inspect and Replace Filters: Regularly inspect fuel filters for clogs and replace them as necessary to ensure unobstructed fuel flow to the injectors, preventing pressure fluctuations.
  • 3. Test and Service the Fuel Pump: Periodically test the fuel pump’s performance, ensuring it maintains the required pressure levels. If malfunctioning, replacement or repair should be conducted promptly.
  • 4. Evaluate the Pressure Regulator: Check the pressure regulator for defects or inefficiencies. Repair or replace it if it fails to maintain consistent pressure for optimum fuel delivery.
  • 5. Clean or Replace Fuel Injectors: Inspect injectors for wear or clogs—clean or replace them to ensure proper atomization and pressure management in the combustion chamber.
  • 6. Contamination Management: Implement fuel quality control measures to avoid contamination. This can include installing additional filtration systems or regularly testing fuel for contaminants.

Precautionary Measures for Addressing Injector Pressure Fault

  • Regular Maintenance Checks: Schedule routine inspections of the fuel system.
  • Use Quality Fuel: Only use fuel that meets or exceeds pump specifications.
  • Implement Fuel Filtration Systems: Prevent impurities from reaching the injectors.
  • Monitor Engine Performance: Frequently check for any signs of performance degradation.
  • Train Crew on Troubleshooting: Ensure operational staff understand the symptoms and actions.
  • Remote Monitoring: Implement remote condition monitoring systems to track injector performance and detect early engine faults. With our Vib360 Engine Condition Monitoring System, you can reduce maintenance costs and prevent expensive breakdowns.
In summary, addressing injector pressure faults promptly is crucial for the longevity and performance of marine engines. By understanding the underlying causes, recognizing the symptoms, and taking decisive action, vessel operators can ensure their engines operate efficiently and effectively in all operating conditions.

How Technology at Neptunus Can help you detect the Injector Pressure Fault Early

VIB360 Engine Condition Monitoring System (ECMS) is an advanced early fault detection solution based on torsional vibration. Featuring a simple two-sensor setup, it precisely identifies cylinder-specific faults, enabling proactive maintenance and optimized engine performance.

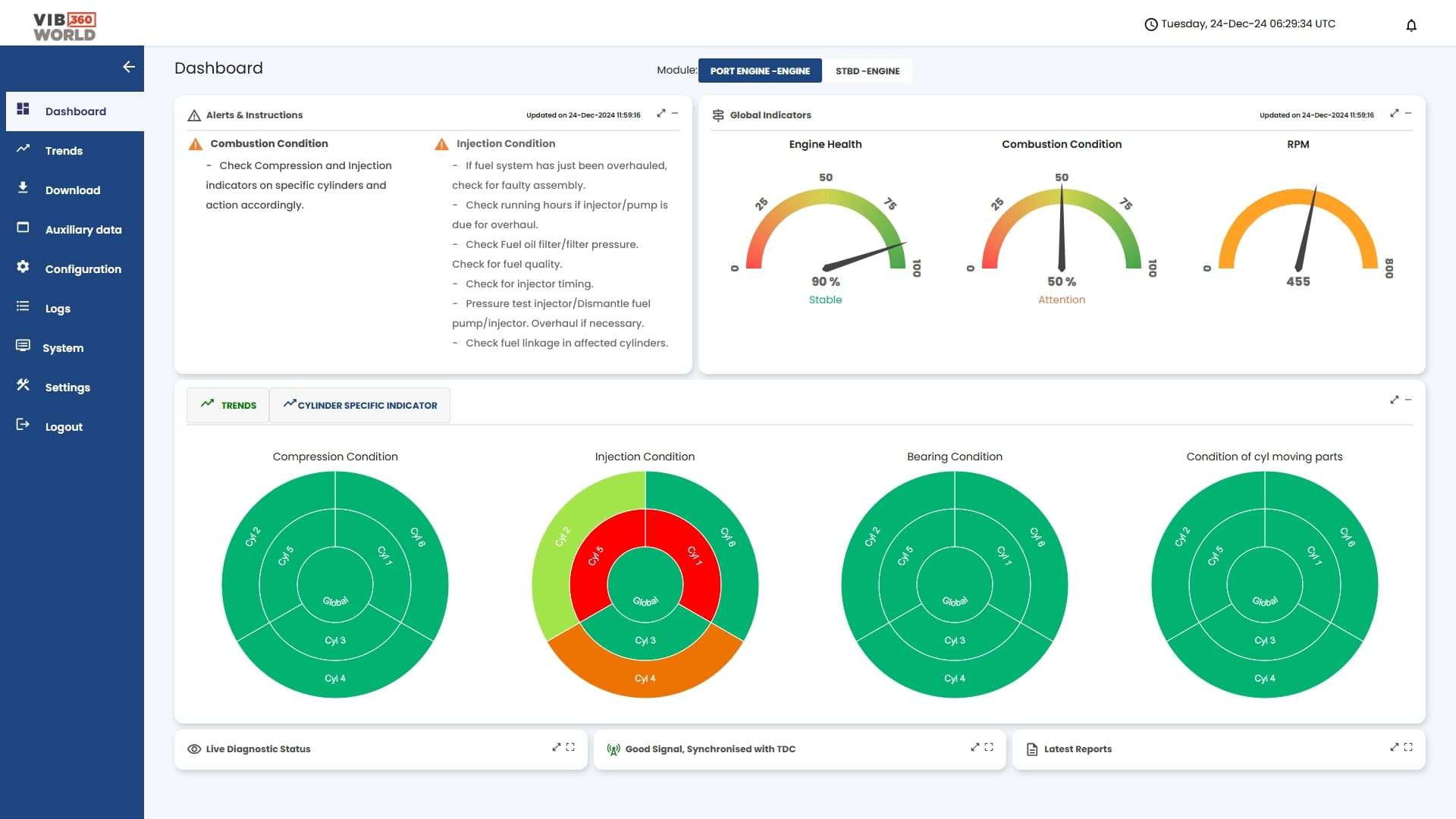

VIB360-DASHBOARD
VIB360 Dashboard

Following are 3 steps you can use our VIB360 ECMS to detect the engine faults:

Step 1: Global Indicators
The Global Indicator provides a snapshot of the engine’s overall health:
GLOBAL-INDICATORS
Most indicators show minimal impact (displayed in green); however, the Combustion Condition is flagged as Orange, indicating potential issues that may stem from the following areas:
  • Fuel Consumption: Fuel Injectors, Fuel Pump, Air Filter, Turbocharger, Oxygen Sensor, Mass Airflow Sensor (MAF Sensor), Piston Rings.
  • Compression Condition: Piston Rings, Cylinder Liner, Cylinder Head, Gasket, Intake Valves, Exhaust Valves, Valve Seats.
  • Injection Condition: Fuel Injectors, Injection Pump, High-Pressure Fuel Lines.
For further investigation, proceed to have look at the cylinder specific indicators.
Step 2: Cylinder-Specific Indicators
Detailed analysis of cylinder-specific indicators reveals the following:
CYLINDER-SPECIFIC-INDICATORS
  • Injection Condition is flagged Red for cylinders X and Y, indicating probable injector malfunctions.
  • Variations in Peak Pressure Readings are observed, likely caused by injector pressure faults. These issues directly impact combustion quality, leading to suboptimal engine performance.
Step 3: Precautionary Actions Recommended by the System
The system automatically recommends specific actions based on the data.
ALTERS-&-INSTRUCTIONS
By acting on these insights, you can optimize engine performance, reduce operational costs, and minimize downtime.
Disclaimer: This content is for demonstration purposes only. Actual scenarios may vary and could either resemble or differ from the example provided.
